| Hand Operated Charpy | ||||
 |
QUOTE REQUEST |
|||
|
The CNB-35 Hand Operated Charpy Notch Broaching Machine is designed for test houses and laboratories, which are producing small batches of test pieces in carbon steels, easily machined low alloy steels, non-ferrous and plastic materials. The machine is of robust construction designed to be mounted on a customers bench. This hand Charpy machine will cut Charpy and Izod 'V' and 'U' notches in pre-machined standard 10mm square, sub-size and 0.45" diameter specimens. Hand operation makes it ideal for small batch quantities. |
||||

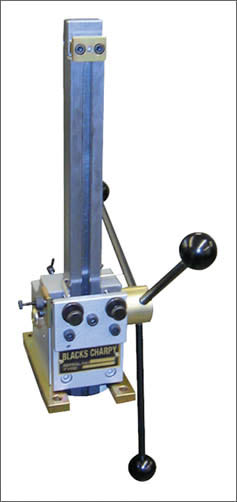

 CNB-35 Hand Operated Charpy |
The broach is mounted in a square section rack and secured at the top & bottom by clamps. Adjusting screws built into the machine body are set to obtain the correct depth of notch and its position along the specimen. |
|||
|
|
||||
 |
||||
|
||||
